KEY FEATURES

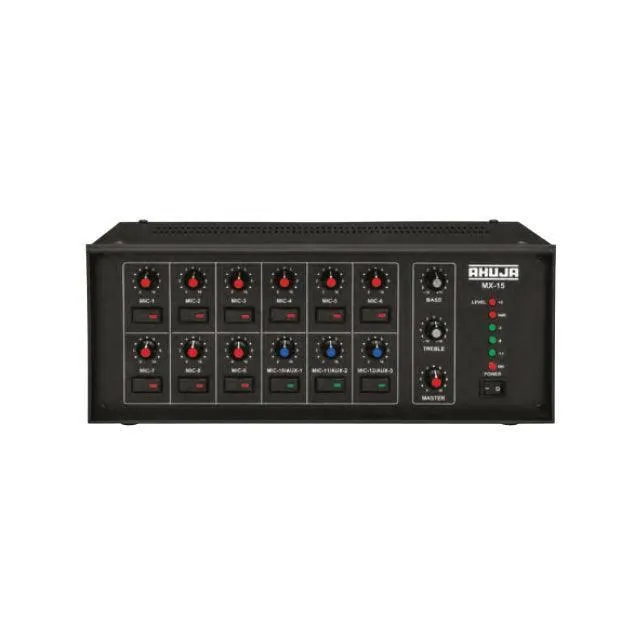

- General Purpose 12 Channel PA Mixer Preamplifier
- 12 Mic & 3 Aux Inputs.
- All inputs with On/Off switches with LED display.
- Master control for overall adjustment.
- 4 Line outputs for connecting a number of Amplifiers or Boosters.
- Headphone output for monitoring.
- Active Bass and Treble tone controls.
SPECIFICATIONS
Power Requirement | AC: 220-240v 50/60Hz, DC: 12V (1×12V Car Battery) |
Outputs | 2 × Preamp 200mV/600Ω, 4 × Line 1V/1kΩ, 1 × Headphone 120mV@ 8Ω |
Frequency Response | 20-20,000Hz (±3dB) |
Distortion | < 1% |
Signal to Noise Ratio | 50dB |
Input Channels | 12 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, 1 × Aux 500mV/100kΩ |
Tone Controls | Bass: ± 10dB at 100Hz, Treble: ± 10dB at 10kHz |
Dimensions | W350 × H145 × D200 mm |
Weight | 3.9kg |
